Acoustic Door Bottom Seals Concealed Automatic Drop Down Aluminiu
Weatherstrips 915MM
When the door is cloesed, there's a big gap between the door leaf
and floor, the noise, dust, wind, insects,cockroach and some other
things will through it. The Concealed Automatic Drop Down Door
Bottom Seals can settle the problems perfectly. The automatic drop
down door bottom seal will be automatically dropped down and then
sealed the gaps, when open the door, the seals will be retract into
the aluminium shell. Compare with other common surface mounted
seals, it will not effect the door appearance, will not scratch the
floor.
The 6063 aluminiu alloy shell, silicone sealing strips and
stainless steel accessories makes it has the long service life.
Features:
A. BH-M001 be used for wind-proof, dust proof and keeping bugs
outside. When the door opened, the hermetic seal will rise up and
leave the floor. When the door closed, the frame presses the nut at
the end of seal, it will fall down to floor tightly.
B. Properly distance between door and floor :3-16mm
C. Length: 915mm ( could be cut to 800mm). Special size is
available.
D. Material :the rubber which is acid-proof, alkali-proof,
cold-proof, hight-temperature endurable and anti-aging.
Installation instruction:
Step 1. Make sure the install direction. The end with copper bolt
is near to the frame with hinges and the hermetic seal face to
floor.
Step 2. Make sure the bottom seal length can fit the door:
The length of BH-M001 bottom seal should be 3-5mm shorter than
width of the door if need to make the side plates implant of the
door leaf. If not, the length should be same as the door width.
Step3. According to the frame and door size, cut the end without
copper bolt to get the proper length.
Step4. Adjust : After installation. Open the door and turn on the
copper bolt out or in to adjust the drop down parts to touch the
floor slightly when the door closed.
Note: if there are too few ejections, the sealing effect cannot be
reached; If there are too many ejections, it is easy to scratch
with the floor and damaged the seals when closing the door, so it
needs to be repeatedly adjusted to achieve the best sealing effect.

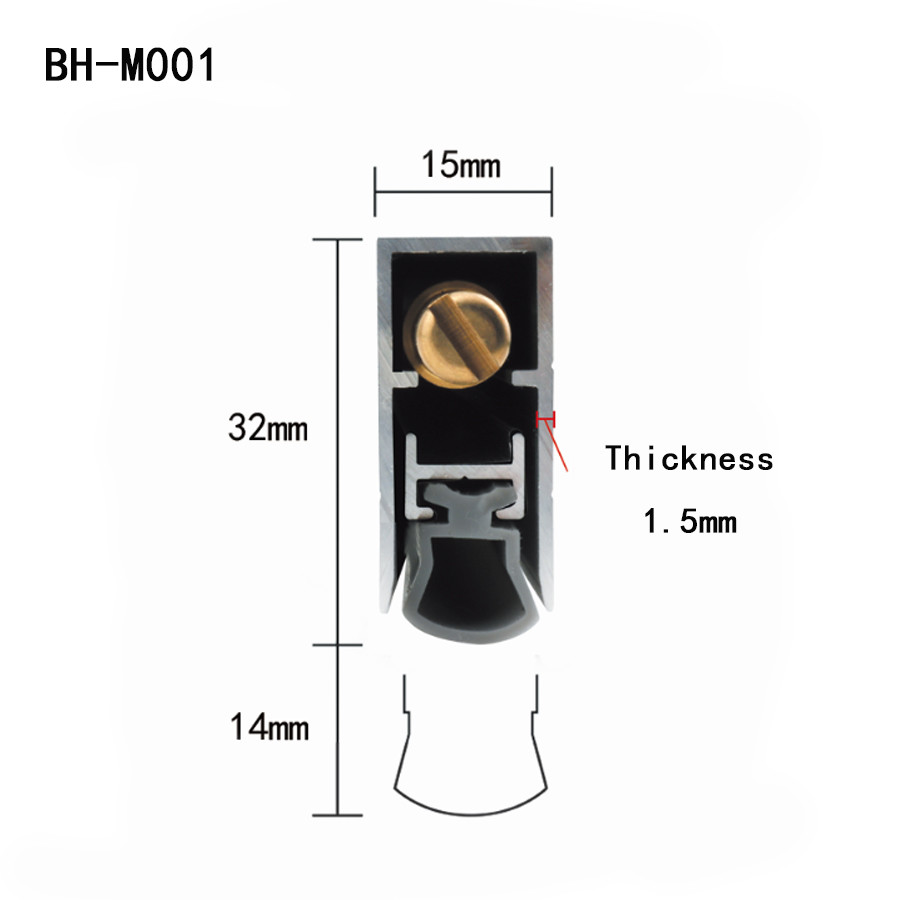

Specifications:
| Item No.: | BH-M001-915 |
| Min/Max Gap: | 3mm to 14mm |
| Finish: | Clear Anodised |
| Fixing: | Concealed, Fixed by the side plate from both side |
| Seals: | Silicone Rubber Sealing Strips |
| Fixed Part: | Stainless steel side plate with screws |
| Length: | 915mm |
| Other length can do: | Length can do custmized, from 250mm to 1500mm, |
| Length can be cutted: | 915mm - can be cutted to 800mm |
